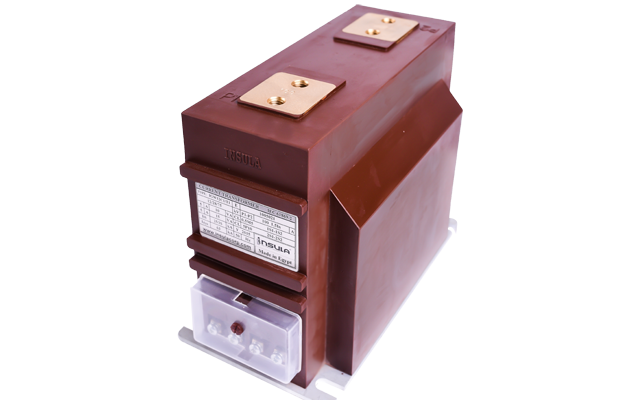

Standard Specifications acc. To IEC 61896-2 to which INSULA’s products complies: 1. Rated Primary 25 …. 3000 (intervals of 5) 2. Rated Secondary 5A or 1A 3. Accuracy Class: a. ‘M’ Wdg b. ‘P’ Wdg Class X (on request) 0.2, 0.5 or 1 {Fs < 5 or 10} 5P or 10P 10/15/20 4. Rated…
Read More

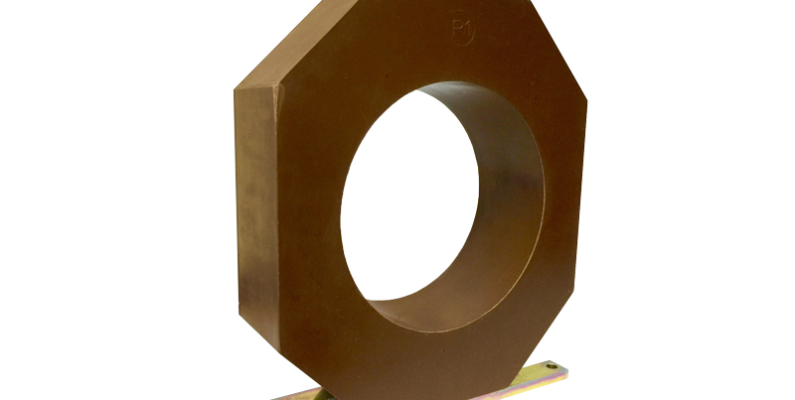

GSA cast resin current transformers can be used for a variety of measuring, revenue metering (billing) and protection tasks. If the busbar systems or medium voltage cables are sufficiently insulated, these current transformers can be used for insulation levels higher than Um=0,72KV (Highest voltage for equipment Um). The ring-type current transformer for outdoor use is…
Read More

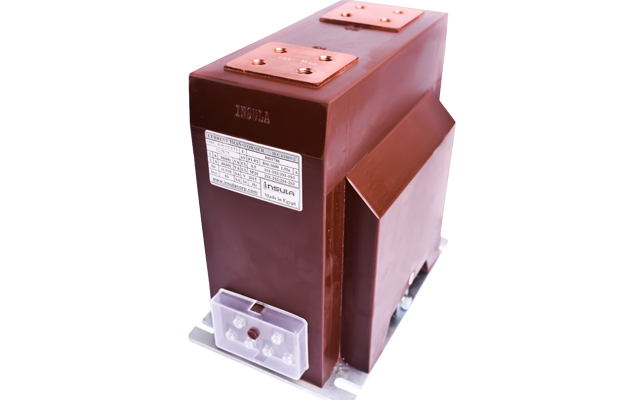

type L W H FX FY C.D. C2S 280 178 245 240 155 280 D2S 310 178 245 270 155 290 E2S 350 178 245 310 155 320 D3S 310 208 245 270 180 290 E3S 350 208 245 310 180 320
Read More

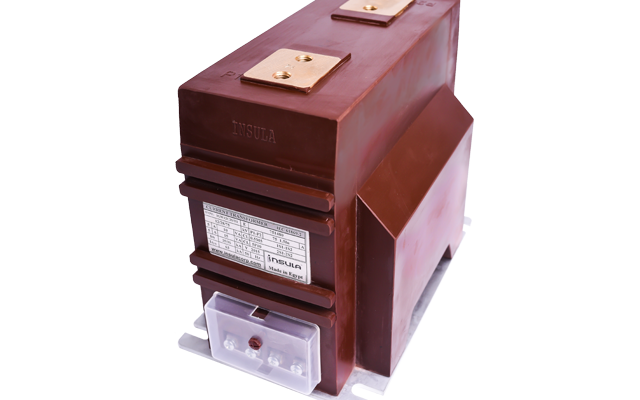

type L W W1 H H1 FX FY C.D. RB2 330 178 110 310 280 290 155 440 RC2 350 178 110 310 280 310 155 440 RD2 350 178 110 310 280 310 155 440 RH2 330 178 110 310 280 290 155 310 RC3 350 208 110 310 280 310 180 440
Read More

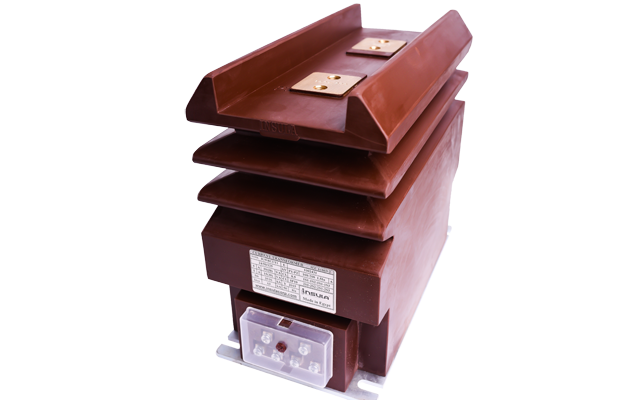

type L W H FX FY C.D. C2 280 178 280 240 155 255 D2 310 178 280 270 155 270 E2 350 178 280 310 155 295
Read More
type L W H FX FY C.D. B1 250 148 220 215 125 230 C1 280 148 220 245 125 245 D1 310 148 220 275 125 260 E1 360 148 220 325 125 285
Read More
